Model: 88.31.7.24.12307

Rated Voltage: 230-240V
Power: 15W
Lamp Holder: E14
Mounting Size: 55*70(mm)

Certificate: TUV、CE、ROHS

Drawings: Click Download
  • Material thickness indication in millimeters (1.0-1.2mm in this product)
  • Terminals (in mm) for electrical connection and/or grounding indication (in this product, 6.3*0.8mm)
  • Light distribution curve
  • The oven lamp is equipped with a special Edison spiral lamp, which specifies the upper limit and nominal voltage
  • Rated temperature T550 (continuous use)
Contact us for details

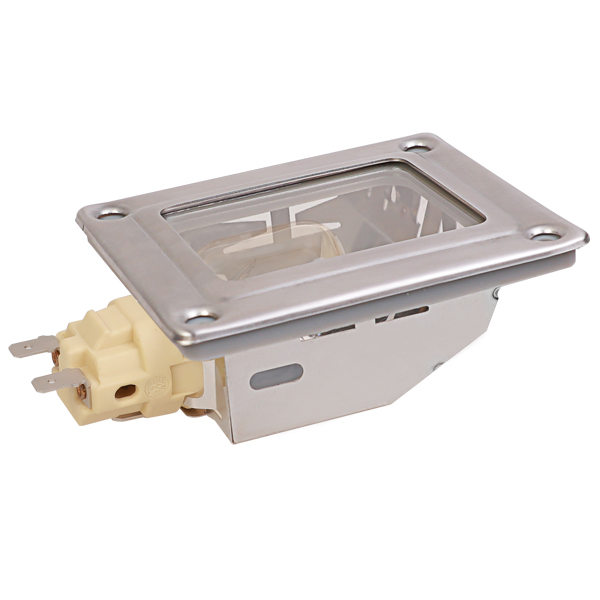

E14 Oven Light Bulb

Description:

This halogen light is suitable for ovens and microwave ovens. Our common oven lamp installation dimensions are 30*70mm, 55*70mm, φ35.5mm, φ48mm, φ67mm. The lampshade type, bulb type, base material, etc. can be customized according to customer needs.

Features:
1. High temperature resistance, low working temperature, good heat dissipation, not easy to cause aging and yellowing of the lampshade
2. High strength and good light transmittance
3. Good heat dissipation performance and long service life
4. Low operating voltage during operation, safe and reliable
5. The bulb is small in size and easy to install
6. High color rendering index
7. Energy saving and environmental protection
8. Quality assurance, passed multiple international certifications


Related Product Parameters:

Product Model

Power

Wires

Temperature

Fixing

Bulb Type

Voltage

Lens Material

Lampholder Material

Reflector

88.31.7.24.11307

15W

/

/

Snap in fixing

E14

110-130V

Borosilicate glass 550℃

Ceramics

Stainless Steel

88.31.7.24.12307

15W

220-250V

88.31.7.24.11507

25W

110-130V

88.31.7.24.12507

25W

220-250V

88.31.7.24.11308

15W

110-130V

88.31.7.24.12308

15W

220-250V

88.31.7.24.11508

25W

110-130V

88.31.7.24.12508

25W

220-250V


Note: Due to the special products of our company, different specifications will have different prices, so the exact price cannot be determined. If you are interested in buying, please contact our customer service staff, thank you for your cooperation!

Brand:

J&V

Product Type:

Oven Lamp

Model:

88.31.7.24.12307

Mounting Size:

55*70(mm)

Lampshade Installation Method:

Snap-in

Bulb Type:

E14

Power:

15W

Voltage:

230-240V

LampShellMaterial:

SUS

LampHolderMaterial:

Ceramic lamp holder 88.31

ShadeMaterial:

Borosilicate glass

TerminalType:

250 male terminal, 6.3*0.8mm

Safety:

TUV、CE、ROHS
